Analytical instruments

Density and alcoholic strength, distillation, sulfur dioxide, tartaric stability, moisture and dry residue, surface tension, soil particle size.

Gibertini manufactures and sells bench instruments and a portable density meter for testing wine and must, beer, spirit drinks, food products, surfactants, soils and industrial powders.

The Parameters and instruments table matches each parameter with its matrix and instrument.

Particle size and surface tension

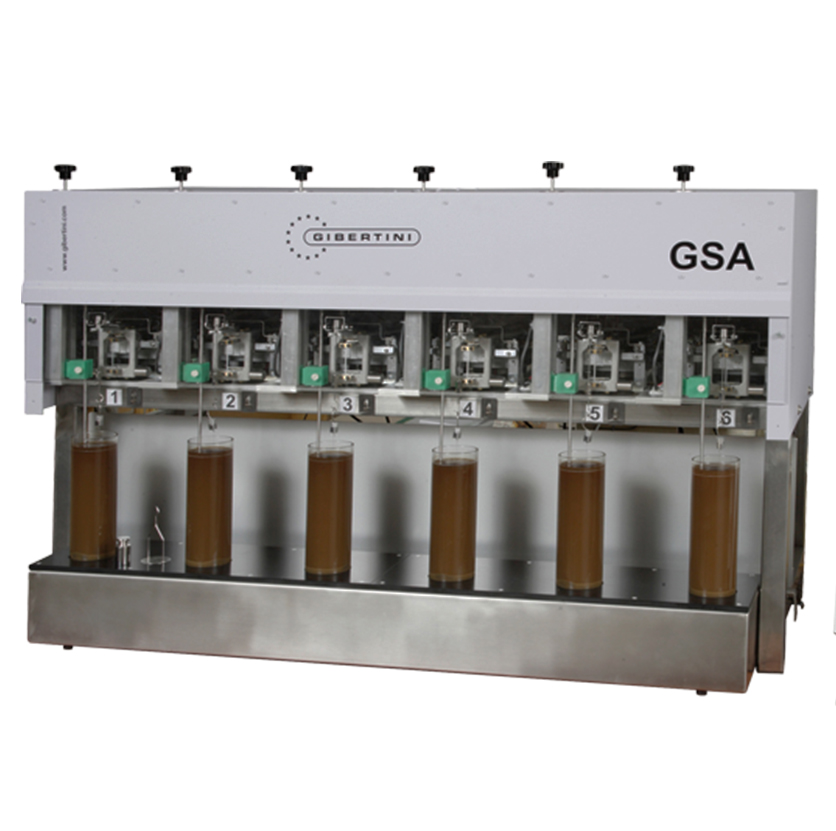

Gibertini GSA Grain Size Analyzer with six stations

GSA, Grain Size Analyzer

Particle size distribution of fine fractions

The instrument measures the density of the suspension as the particles settle and derives the particle size distribution, following the procedure described in ASTM D422 and UNI CEN ISO/TS 17892-4.

0.100–0.001 mmfine fractions
6 hanalysis time down to 2 µm
up to 6samples at a time, 500 mL each

Applications

  • Soils
  • Calcium carbonate
  • Industrial powders
  • Quality control
See the product page

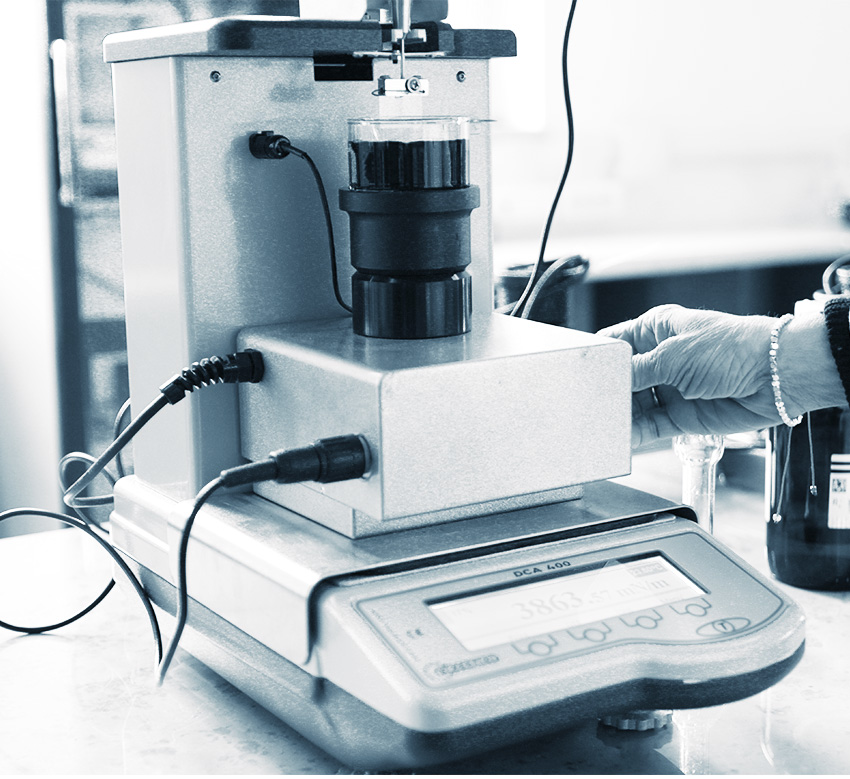

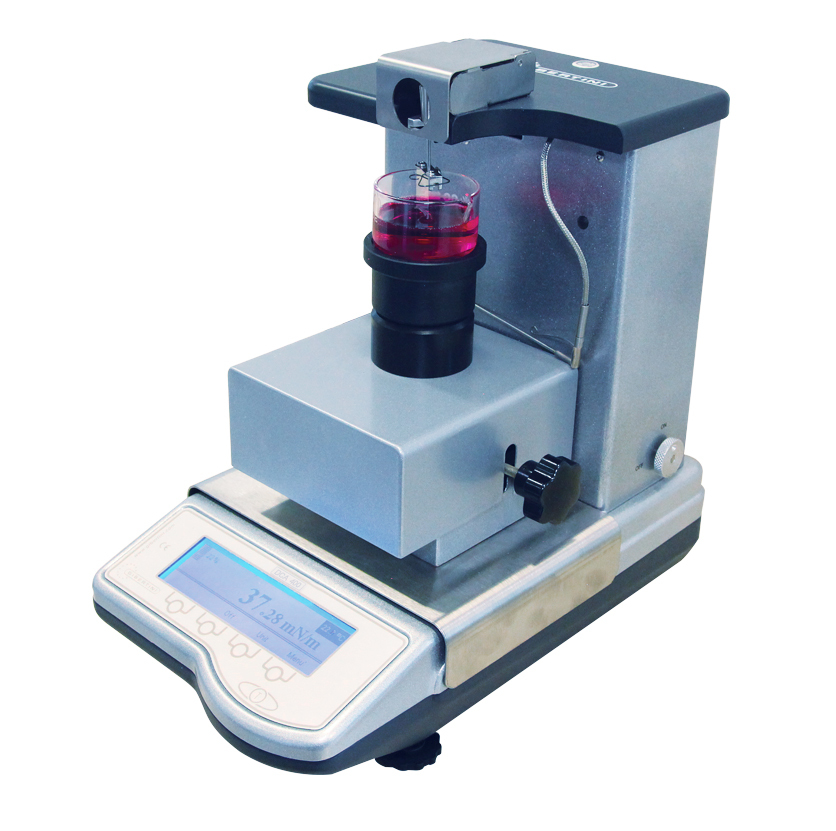

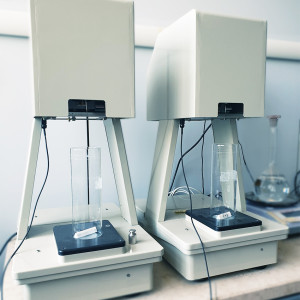

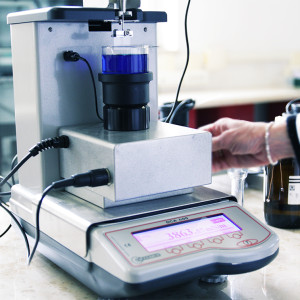

Gibertini DCA digital tensiometer

DCA and DCA 400

Digital tensiometers

Surface and interfacial tension of liquids with the Wilhelmy plate or the Du Noüy ring, contact angle and critical micelle concentration (CMC). The DCA 400 performs the measurement with a motorized lift, independently of the operator.

1–1000 mN/mtension, 0.01 mN/m division
1–180°contact angle
CMCcritical micelle concentration

Applications

  • Surfactants and detergents
  • Inks and coatings
  • Textile fibers
  • Food products
See the product page

MicroDens, portable digital density meter

Density and concentration, where you need it.

MicroDens measures the density of any liquid within its range, from 0.600 to 1.200 g/cm³, with a MEMS oscillating-tube cell and a built-in temperature sensor. From density and temperature it calculates concentration with built-in tables for binary and quasi-binary mixtures: alcoholic strength, °Brix, °Plato, sodium chloride, glycerol and other scales.

Battery powered and fitted with a color touch display, it is used in the laboratory, in production and in the field: beverages, food and aqueous solutions. For applications not covered by the standard scales it holds up to 20 user methods with dedicated tables.

  • Density from 0.600 to 1.200 g/cm³, accuracy ±0.0001 g/cm³
  • Sample temperature from -10 to +60 °C, accuracy ±0.1 °C
  • Sample viscosity up to 50 mPa·s (calibrated measurement up to 5 mPa·s)
  • Sample: 1 mL per filling
  • Predefined methods and up to 20 user methods; memory of 2000 readings
  • Bluetooth and USB-C; MicroDens BLE dongle included; battery for 10 hours of continuous use, 380 g

PC programs: USB Extractor and Data Logger bring the readings into Excel; Logger Pro collects them in sessions, with charts and quality control limits.

MicroDens Logger Pro on a PC: quality control session for a batch, with density readings between the limits MicroDens portable digital density meter, three-quarter view

MicroDens and MicroDens Logger Pro. Demonstration data.

Parameters and instruments

Parameter Matrix Principle Instrument
Laboratory and industry
Particle size distribution of fine fractions Soils; calcium carbonate and industrial powders Sedimentation, Stokes' law GSA
Surface and interfacial tension, contact angle, CMC Surfactants, detergents, inks, coatings, textile fibers, food products Wilhelmy plate, Du Noüy ring DCA and DCA 400
Moisture and dry residue Flours and semolina, sugars, food products, biological sludge Infrared drying CrystalTherm
Density and relative density; concentration: alcoholic strength, °Brix, °Plato, sodium chloride, glycerol Liquids from 0.600 to 1.200 g/cm³: beverages, food, aqueous solutions Oscillating tube MicroDens
Wine, beer, spirits and food · parameters by stage on the Food & Beverage page
Density at 20 °C and alcoholic strength by volume on the distillate; dry extract and must evaluation with the MIA MOD accessory Must, wine, beer, distillates Hydrostatic weighing (Archimedes’ principle) MIA 2020
Distillate for alcoholic strength; volatile acidity, sulfur dioxide and sorbic acid on the distillate Wine, must, pomace, beer, spirits Distillation; steam distillation for volatile acidity, sulfur dioxide and sorbic acid SDEE

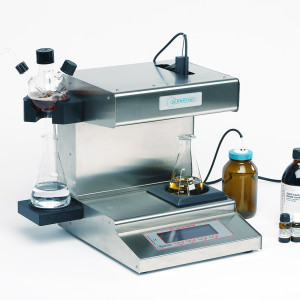

Free and total sulfur dioxide Wines, fruit juices, alcoholic beverages, vinegars Iodometric titration with weighing of the iodine; total on the distillate prepared with SDEE SO2 Gravimeter; total: SDEE + SO2 Gravimeter
Tartaric stability Wine Conductometry SmartCheck

Bench instruments

Moisture, surface tension and particle size

Wine, spirits and beer

Trials on customer samples

On request, for specific needs, the Gibertini laboratory runs practical trials on samples sent in by the customer, to define the analytical method or to check the results before purchase.

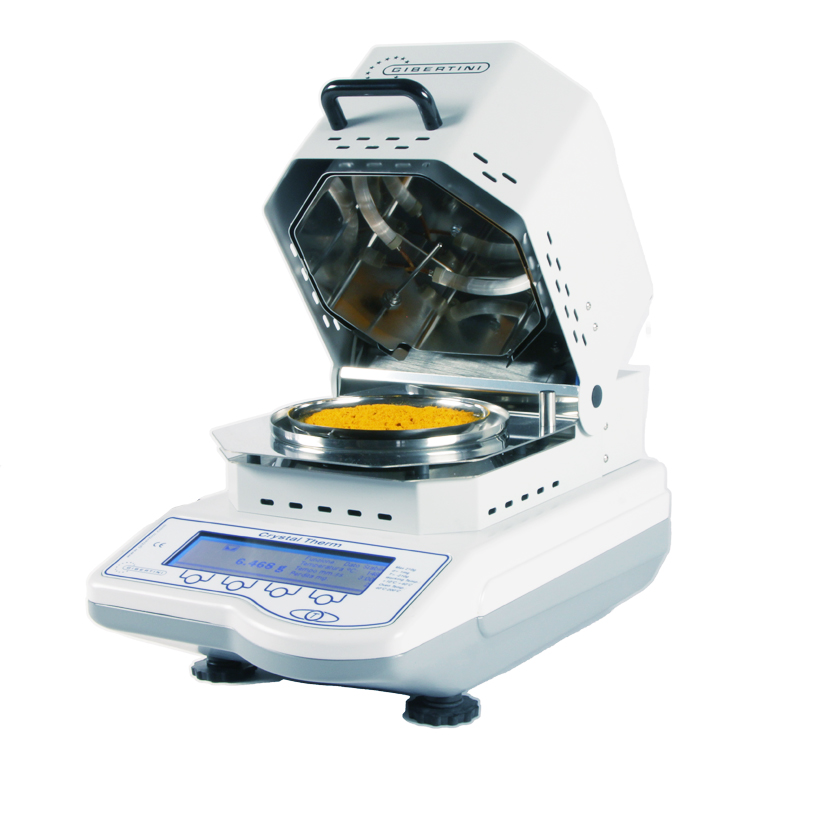

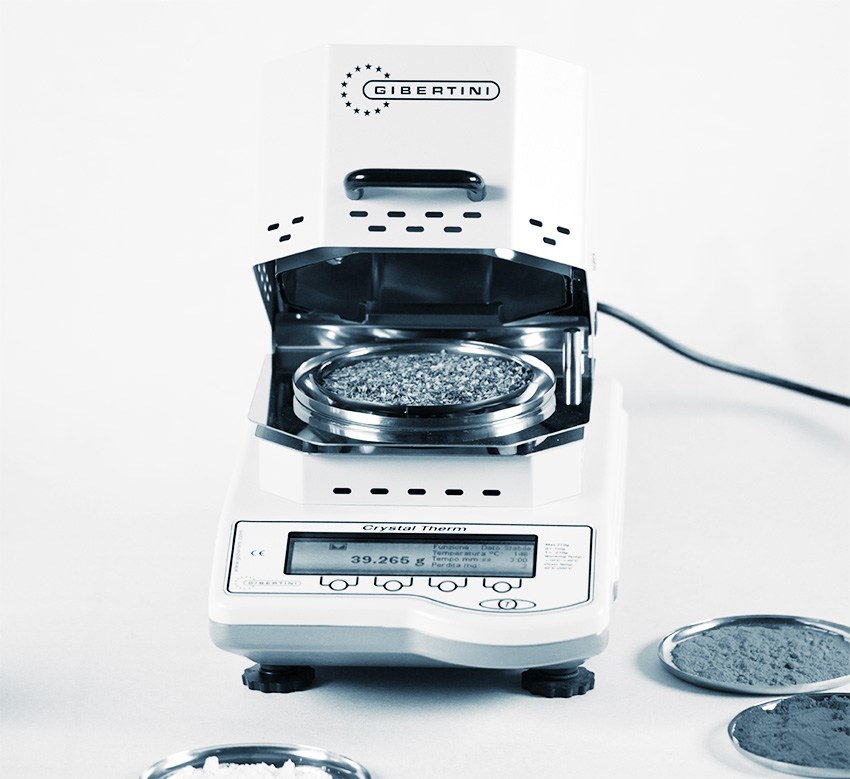

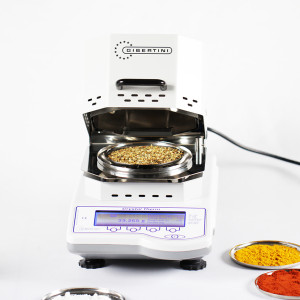

CrystalTherm moisture analyzer with the samples to be tested

Moisture and dry residue

CrystalTherm
  • Flours and semolina
  • Sugars
  • Food products in general
  • Biological sludge

Distillation

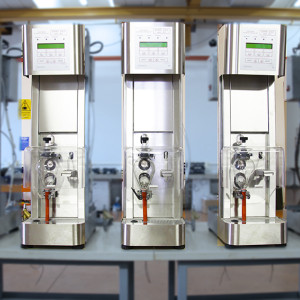

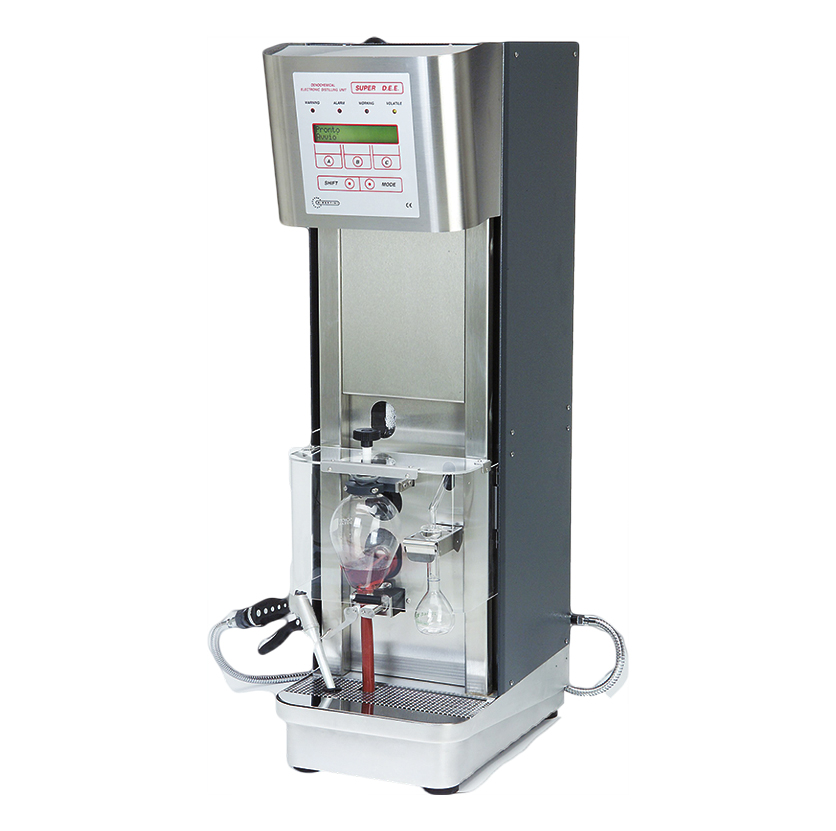

SDEE
  • Wines, musts and pomace
  • Beers and spirits
  • Confectionery and creams
  • Perfumes

Surface tension

DCA
  • Surfactants and detergents
  • Food products
  • Natural and synthetic textile fibers
  • Inks and coatings

Particle size

GSA
  • Soils
  • Calcium carbonate
  • Industrial powders for quality control

Density and alcoholic strength

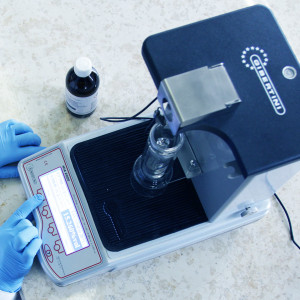

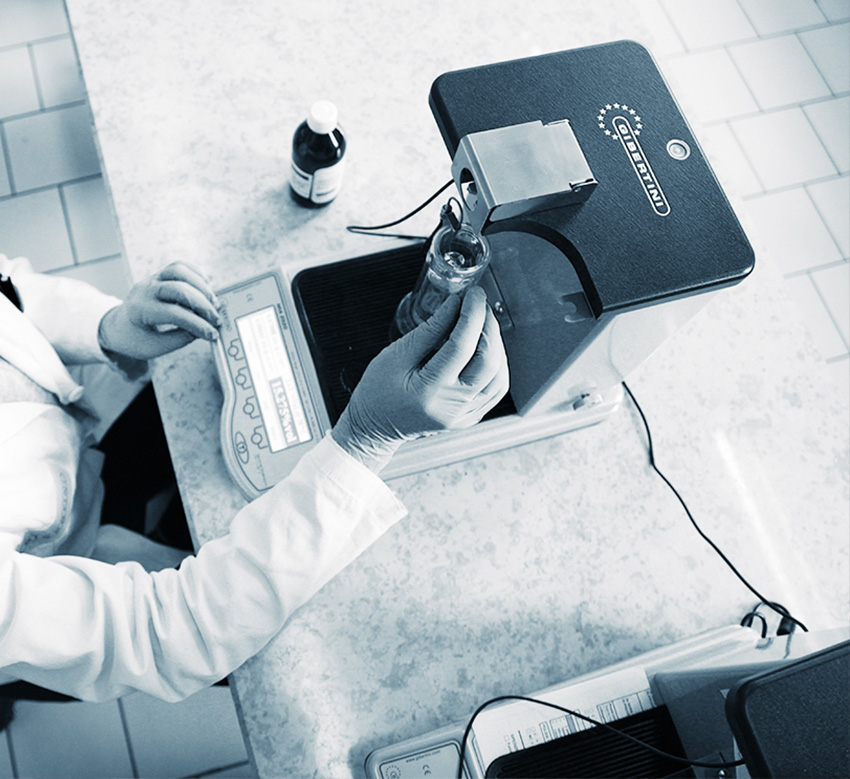

MIA 2020
  • Wines and spirits
  • Beers and musts
  • Milk and juices
  • Vinegars and food liquids
Contact us

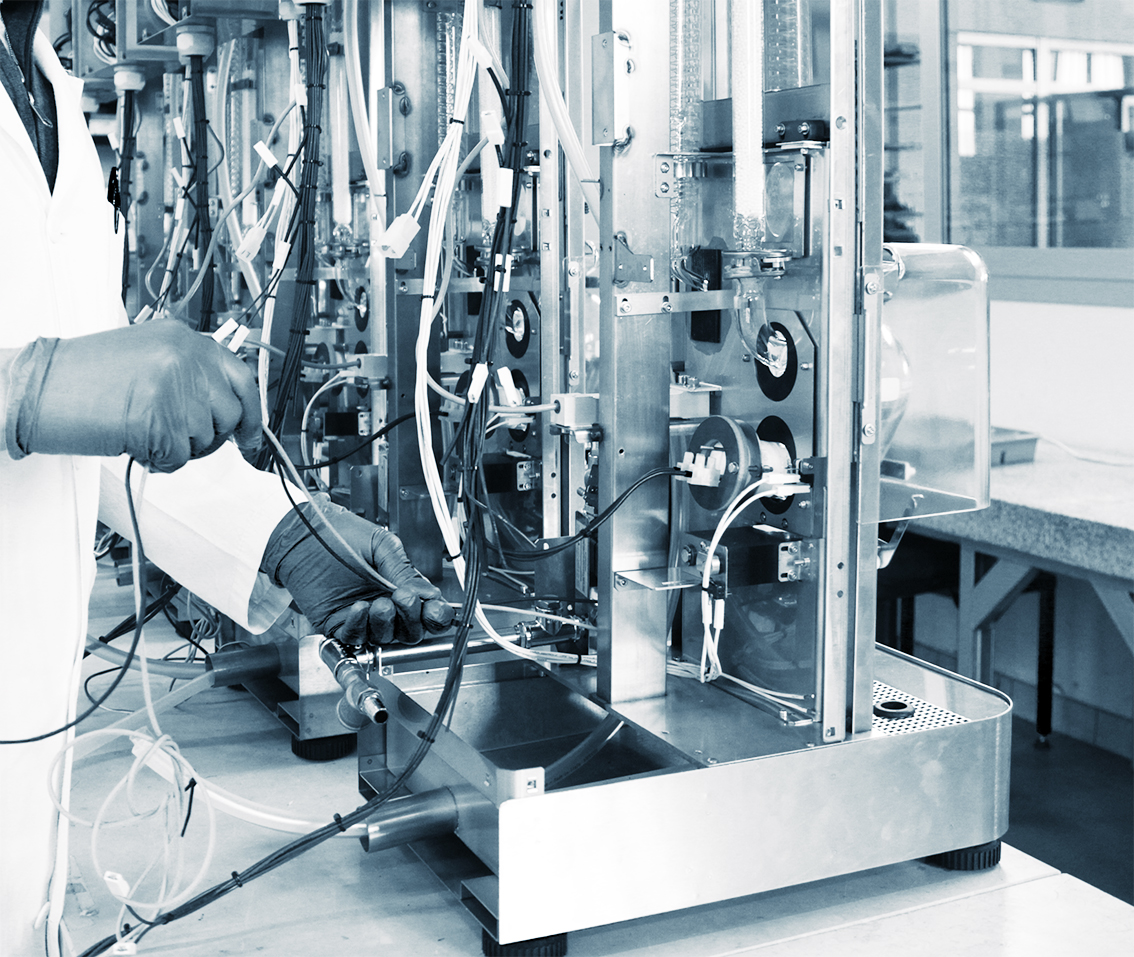

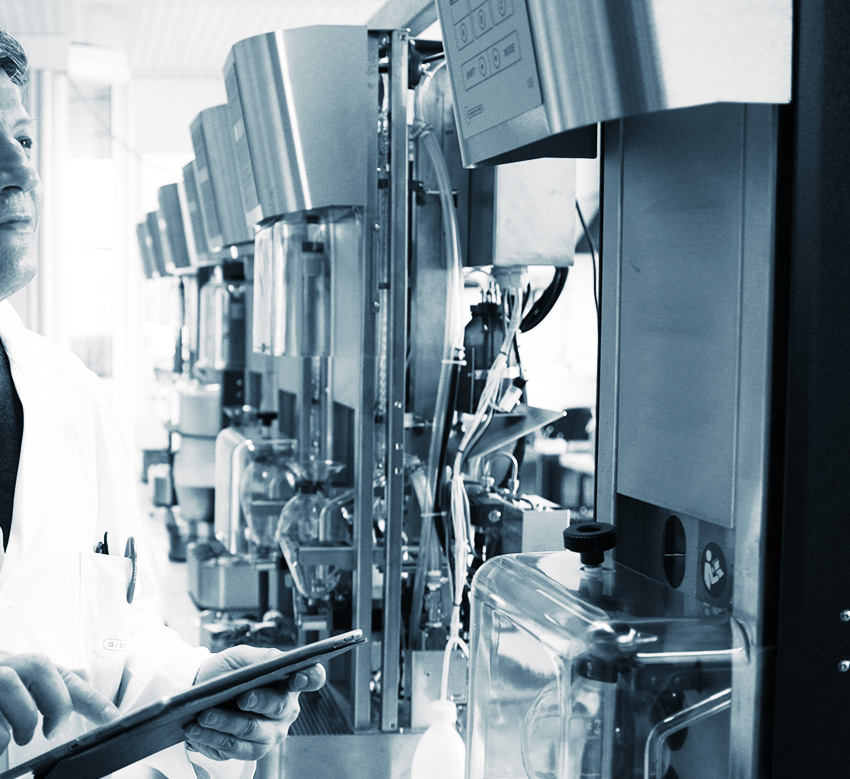

Assembly and testing of the instruments at the Novate Milanese plant

Research, development and manufacturing in Novate Milanese

Gibertini balances and analytical instruments are designed, assembled and tested at the headquarters in Novate Milanese, on the edge of Milan. Checks before and after assembly close with the verification of every single instrument.

The applied research activity has been formally recognized since 1993, when a ministerial decree of 23 June entered Gibertini in the Italian register of highly qualified external research laboratories.

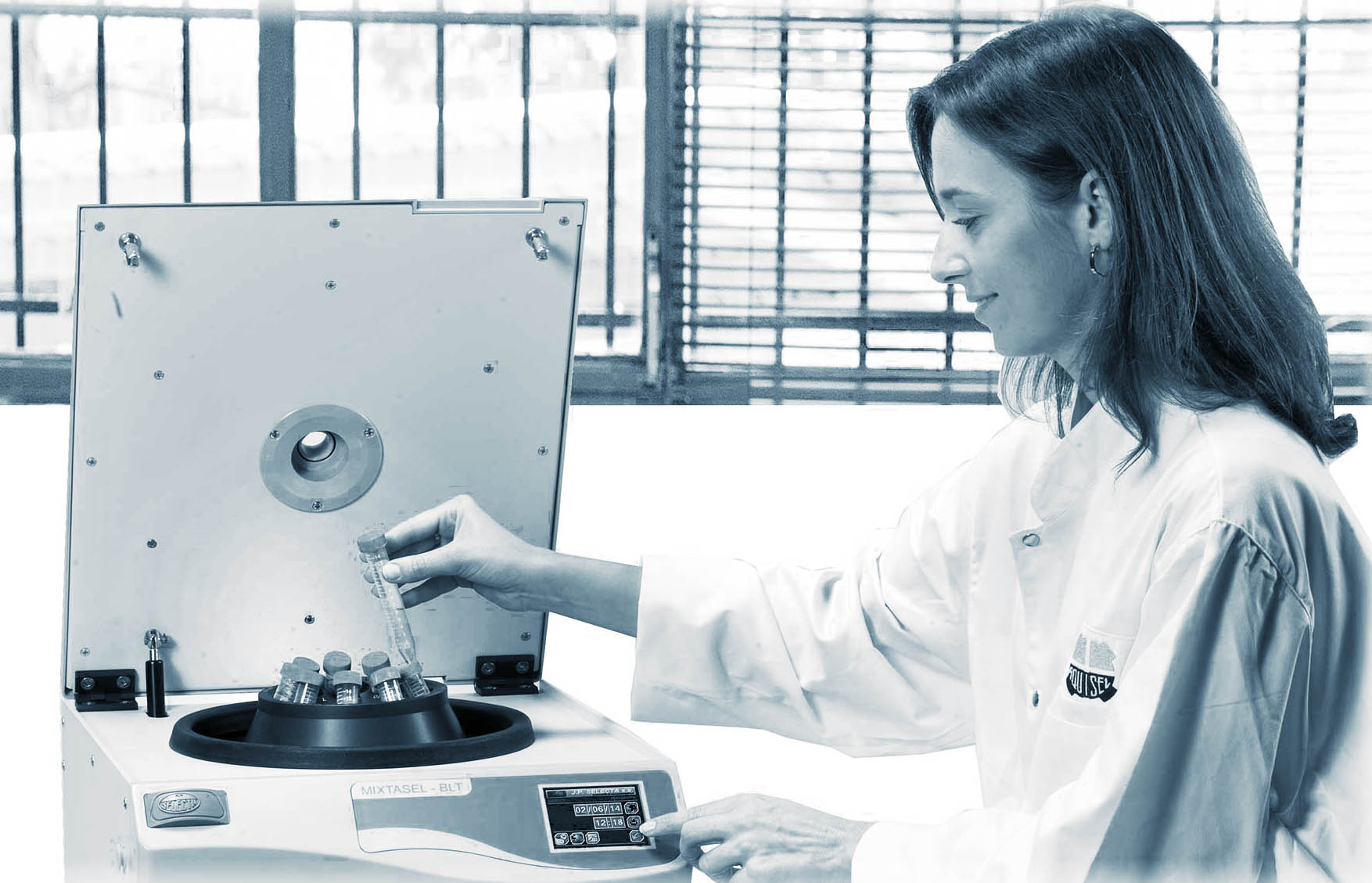

J.P. Selecta laboratory centrifuge in use

J.P. Selecta

Gibertini is the Italian distributor of J.P. Selecta, the Spanish manufacturer of general laboratory equipment, and provides technical service, installation and warranty.

Find the best solution to your needs

A qualified expert will analyze your needs to choose the right instrument.

Contact an expert

MicroDens

Analysis Instrument

Gibertini portable density meter with silicon MEMS technology for the determination of density,...

Find more

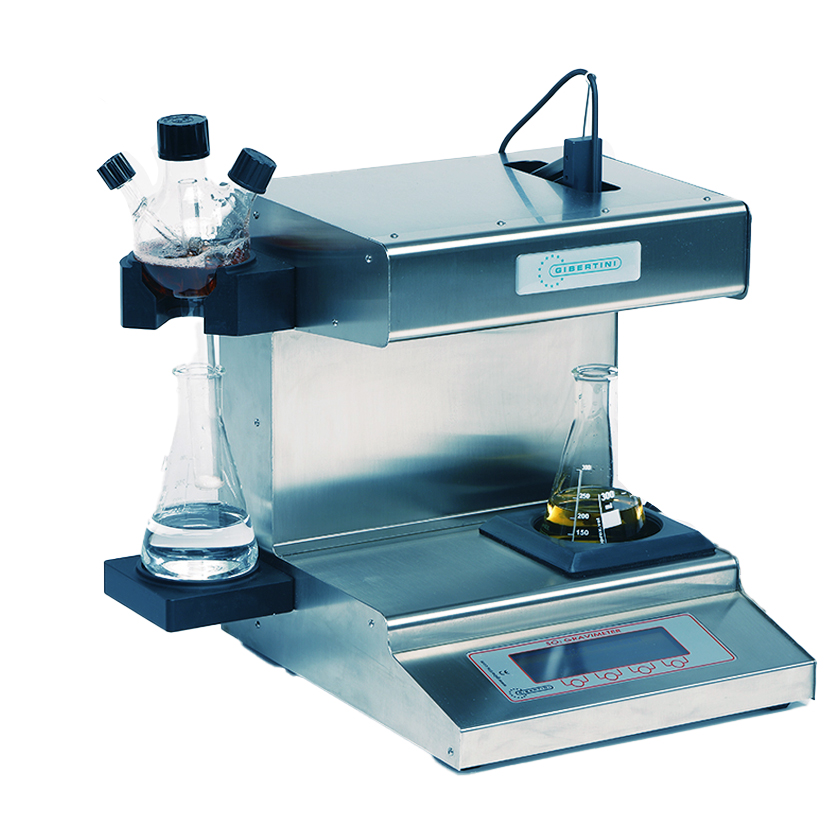

SO2 GRAVIMETER
