PTF Platforms

The Gibertini PTF series : industrial platforms with division from 0.1g to 20g and capacity from 7.5kg to 600kg

Find products

Industrial precision scales

Gibertini floor scales are designed to guarantee precision, robustness and simplicity. They have excellent speed performance and reading accuracy, with fully stainless steel weighing pans.

The PTF series of industrial precision scales meet the most complex needs. Wide range of accessories to offer a high level of customization.

Gibertini platforms

MODELS

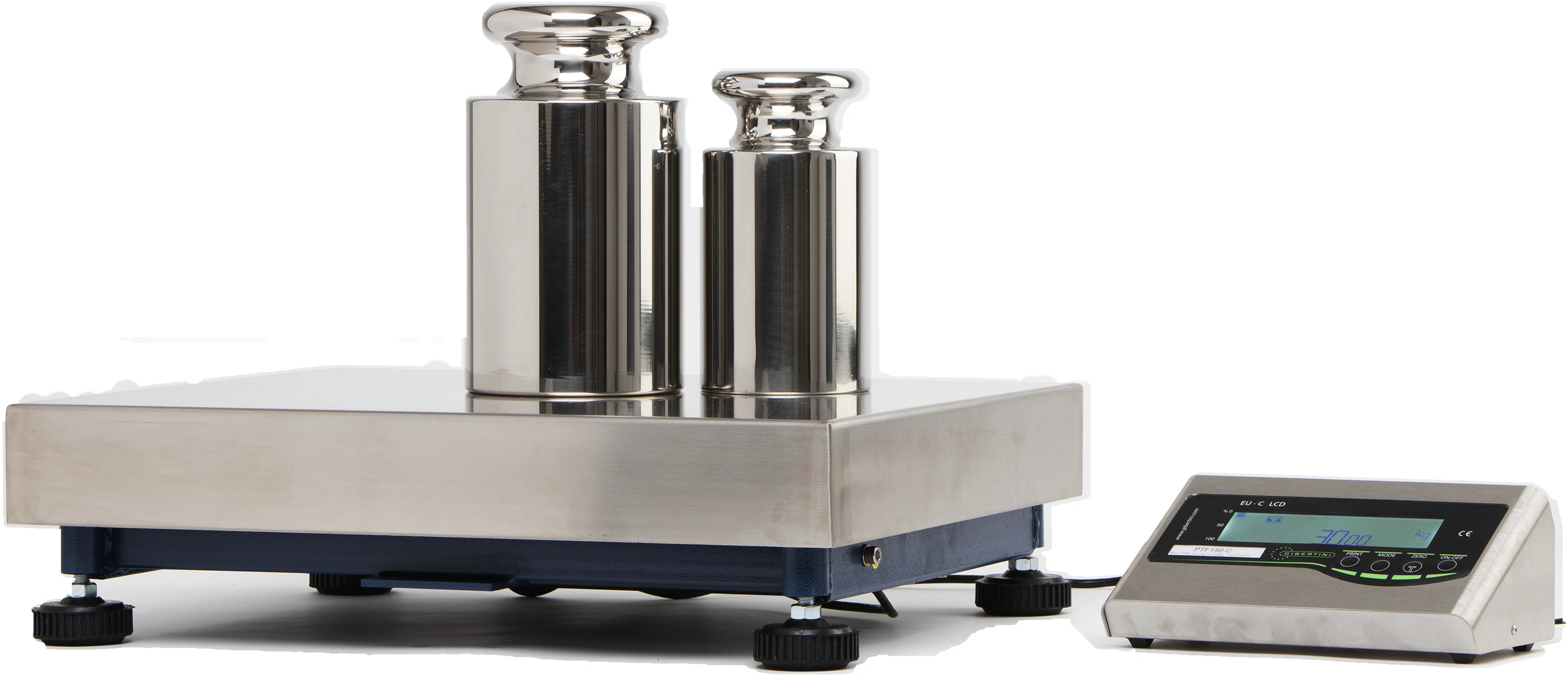

PTF-C

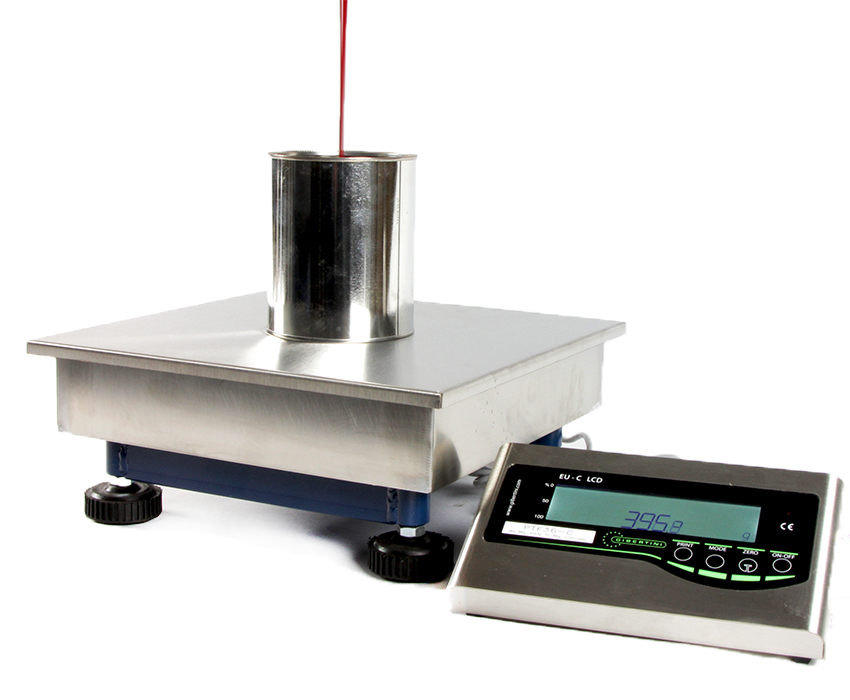

Floor Balance designed to meet the needs of precision and speed in the industrial sector. Used in the preparation of dyes, excellent for weighing and for automatic dispensers.

High precision platforms

Model	Capacity	Division	Linearity	Repeatability	Response time	Pan	On request
PTF 7500-C	7.5 kg	0.1 g	± 0.2 g	± 0.1 g	~ 2 sec.	260 x 260 mm
PTF 15000-C	15 kg	0.1 g	± 0.2 g	± 0.1 g	~ 2 sec.	260 x 260 mm	ATEX
PTF 36-C	36 kg	0.1 g	± 0.2 g	± 0.1 g	~ 2 sec.	330 x 330 mm	ATEX
PTF 50-C	50 kg	1 g	± 1 g	± 1 g	~ 2 sec.	400 x 500 mm	ATEX
PTF 150-C	150 kg	1 g	± 1 g	± 1 g	~ 2 sec.	700 x 700 mm	ATEX

Download PTF-C High precision scales technical data sheet

Precision Platforms

Model	Capacity	Division	Linearity	Repeatability	Response time	Pan	On request
PTF 36.1-C	36 kg	1 g	± 2 g	± 2 g	3/4 sec.	400 x 500 mm	ATEX
PTF 75.2-C	75 kg	2 g	± 2 g	± 2 g	3/4 sec.	400 x 500 mm	ATEX
PTF 150.5-C	150 kg	5 g	± 5 g	± 5 g	3/4 sec.	400 x 500 mm	ATEX
PTF 300.10-C	300 kg	10 g	± 10 g	± 10 g	3/4 sec.	800 x 800 mm	ATEX (700 x 700 mm)
PTF 600.20-C	600 kg	20 g	± 20 g	± 20 g	3/4 sec.	800 x 800 mm	ATEX (700 x 700 mm)

Download PTF-C floor scales technical data sheet

For every need, Rechargeable batteries , stands for display, customizable weighing pans are available , Software specially designed to improve and speed up the weighing and batching processes. Printers .

FEATURES

Security & Stability

PTF-C platforms represent a high quality, versatile and easy to use weighing station. Ideal for productions where accurate and reliable results are required.

Acid-resistant membrane keyboard, easy and immediate operation.
Stainless steel Weighing platform
Frame and base built with oven-painted steel sections
Adjustable feet for leveling
USB serial output
Operating temperature: 10 ° ÷ 40 ° C
Power supply: 220 VAC (-15% / + 10%) with external power supply

Manual - PTF-C STANDARD

Manual - PTF36-C PAINT MODEL

Manual - PTF-C LCD (Esp)

FUNCTIONALITY

Practices & Intuitive

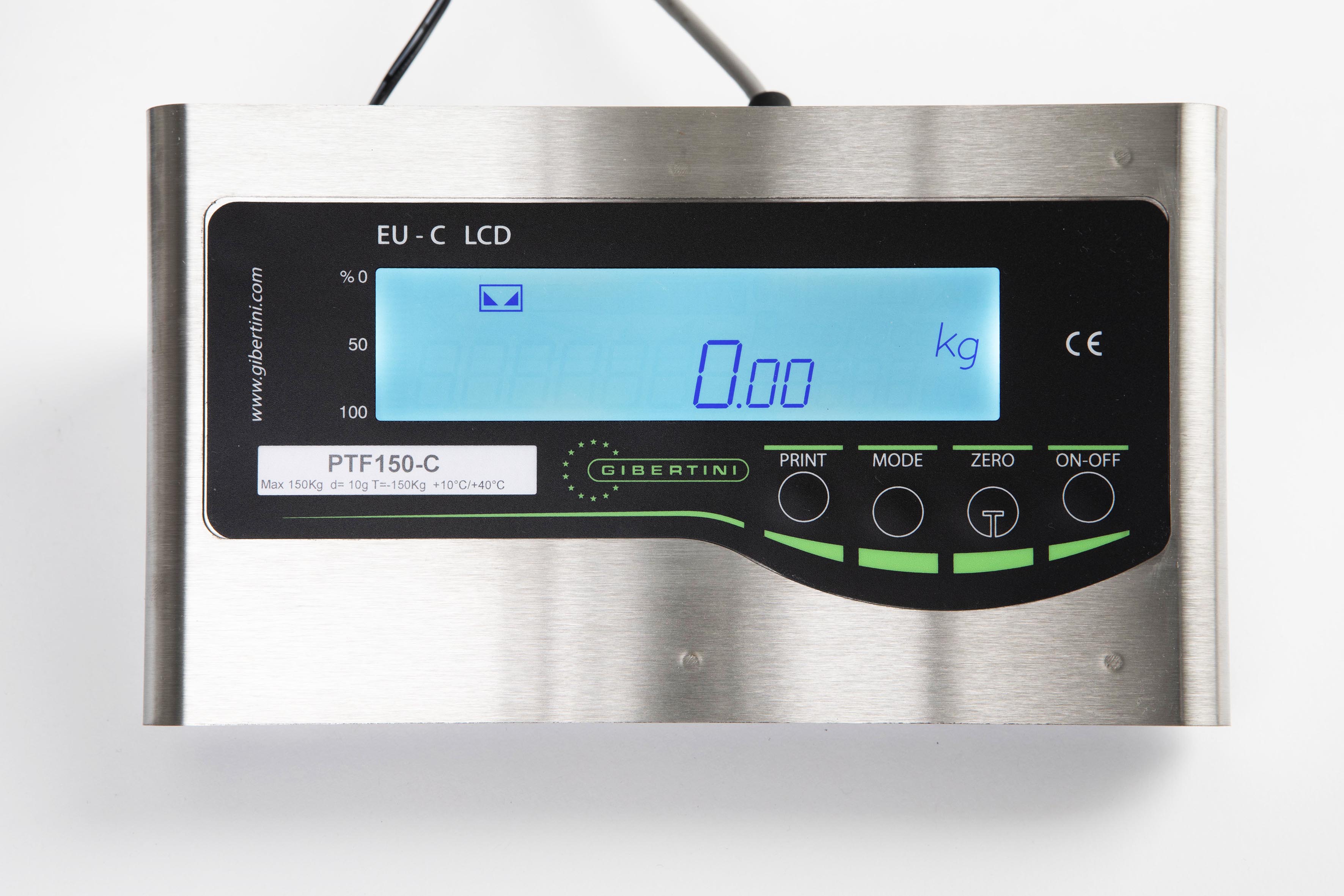

Equipped with a large LCD display and acid-resistant waterproof membrane keyboard, it is easily programmable for percentage weighing, piece counting function or different units of measurement display (e.g. carat)

Automatic full scale calibration with external mass
Operating parameters programmable locally and via USB: reading speed, type of stabilization, etc.
User-selectable digital filter to Easily adapt to environmental conditions
Bar-graph indicator of dosage and scale
Waterproof and acid-resistant membrane rod with functions that can be activated from the menu: reading in g (grams), lb (pounds), oz (ounces), ct (carats),% (percentage) and pcs (pieces)
Piece counting of homogeneous parts. Sampling: 10 pieces and multiples up to 50/100 pieces

PTF platforms Applications

INDUSTRY & APPLICATIONS

Where are the PTF Platforms used?

They are used in the industrial field for their robustness, for example in paint factories for the preparation of dyes, or in shearing plants for process weighing. Thanks to the 0.1g resolution, they are widespread in the pharmaceutical, food and cosmetic sectors, for dosing raw materials.

Paints
Turning and metalworking industries
Pharmaceutical
Food
Chemist
Cosmetic
University

Their most common applications concerns:

Automatic and manual dosing and filling of raw materials (cosmetics)
Formulation of recipes, creation of paint mixes
In quality control
Piece counting in warehouse management

SERVICE

Certification & Quality

Designed for ndustrial environment, precision counting, formulation or dosing and many other sectors, all Gibertini PTF scales can be supplied with:

To ensure compliance with the required standards and the reliability of the results of the measurements carried out( GMP, GLP, Ph.Eur ).

Quality Service
