SO2 GRAVIMETER
Automatic titrator for the determination of total and free sulfur dioxide on high-precision white, rosé and red wines

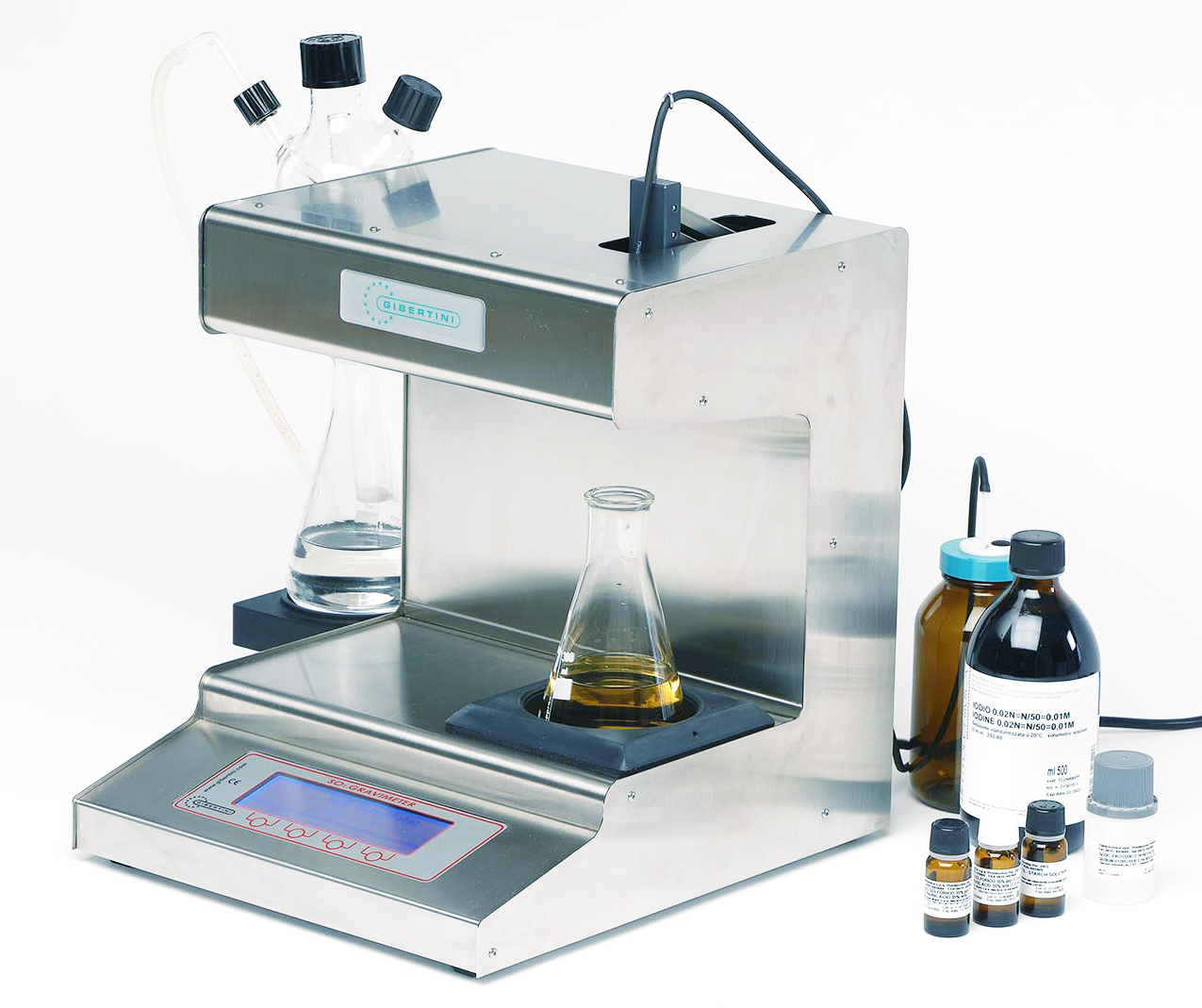

SO2 Gravimeter
Sulfur dioxide is a colorless, non-flammable , soluble in water, gas. However, its use in the food sector is very common: from the production of preserves and jams, to the packaging of dried fruit, from the conditioning of vegetables to the treatment of shellfish. In fact, sulfur dioxide has important antiseptic properties and is also widely used in the wine sector.
The Gibertini SO2 gravimeter automatic titrator is a high precision instrument essential for the determination of free sulfur dioxide on white, red and very red wines, fruit juices, alcoholic beverages and vinegars
FEATURES
Safe & Repeatable
The SO2 Gravimeter system allows to obtain repeatable results:
| Total SO2 | Free SO2 | |
|---|---|---|
| Repeatability | 6 mg/l | 2 mg/l |
| Execution time | 1 ÷ 300 mg/l in 4 ÷ 6 minutes | 1 ÷ 300 mg/l in 2 ÷ 3 minutes |
FEATURES

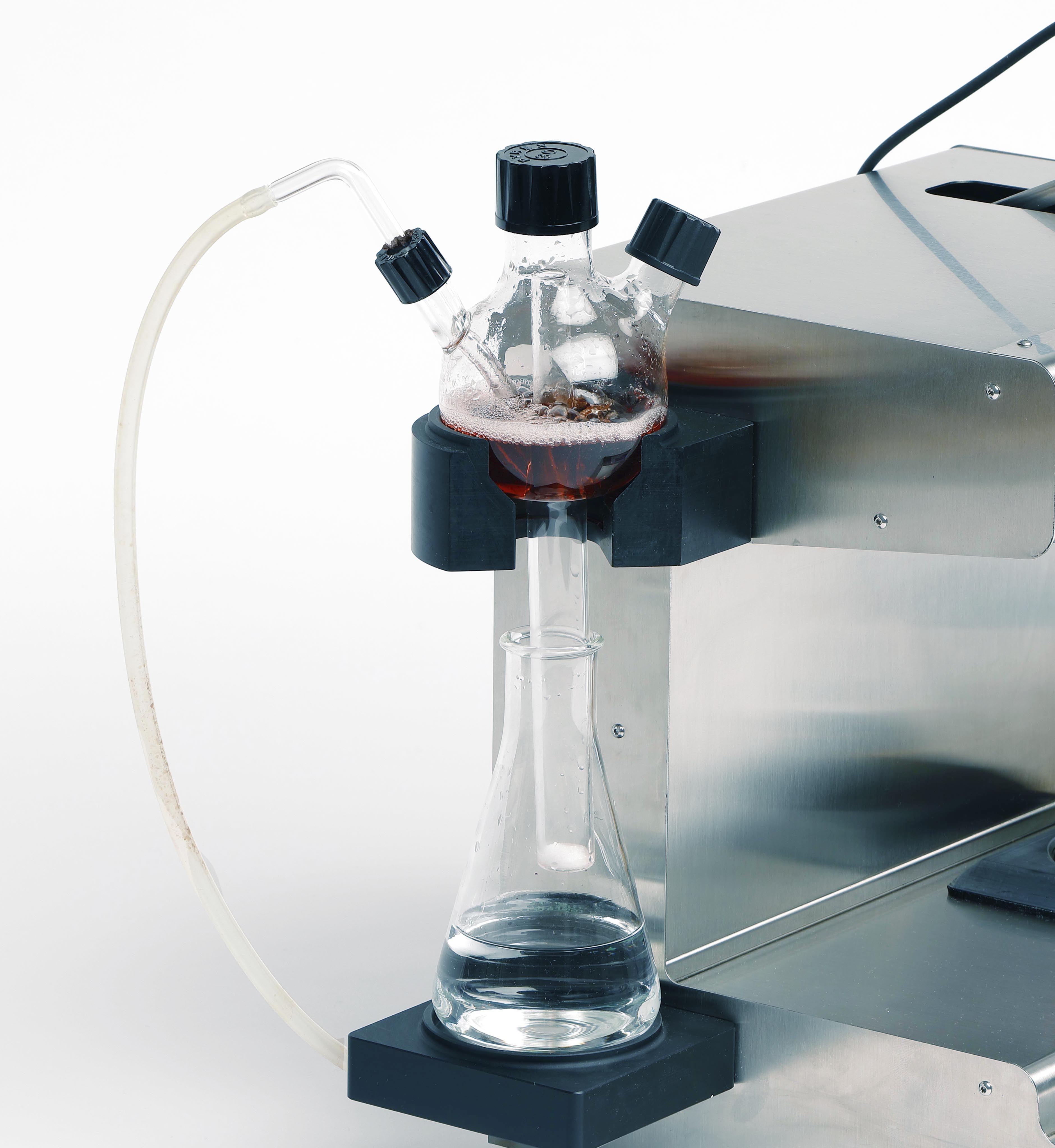

Bubble system for red and very red wines and musts
Preliminary treatment is essential to determine the free sulfur dioxide in red and very red wines, as well as in wines or musts with added ascorbic acid.
The use of bubble allows to extract the free sulfur dioxide contained in the wine or must sample and to fix it stably in a colorless solution of distilled water and NaOH, which will then be titrated with SO2Gravimeter.
Sulfur dioxide
By definition :
In wine we have free and combined sulfur dioxide in different proportions. These proportions depend on the composition and physico-chemical conditions of the wine or must.
| SO2 | Properties | Action |
|---|---|---|
| Free (Molecular) | Antimicrobial | Microbial stability: action threshold in wine 0.6 ÷ 0.8 mg / L |
| Free (Bisulfite) | Antioxidant | Prevents oxidation of wine: action threshold 20 ÷ 40 mg / L |
| Free (Sulfite) | in wine is generally less than 1% | |
| Free (Combined bisulfite) | Low antimicrobial activity | The combined part with weak bonds can contribute to the free fraction |
| Total SO2 | sum of all forms |
Standard Equipment
All SO2 Gravimeter series are supplied with:
Total and free sulfur dioxide
Sulfur dioxide in winemaking is used for its antioxidant and antiseptic actions. Its multiple functions allow to solve many problems during the transformation of wine, as well as enhancing the organoleptic characteristics and allowing a better conservation.
From harvest to refinement:
European RegulationsAlthough the effects of sulfur dioxide in winemaking are important, it has toxic effects on the organism and its use is limited by European laws. The maximum limits allowed are (Art. 65 of EEC Reg. No. 822/87 of 16 March 1987):
(*) The Italian law (Presidential Decree No. 162 of 12/2/1965 art.23) has set the maximum tolerable value for wines at 200 mg / l white and rosé.
Sulfur dioxide is a preservative (E220) and the World Health Organization (WHO) has defined its maximum daily dose in 0.7 mg / kg of body weight, while the lethal dose is defined in 1.5 g / kg of body weight.
| Wine | Conventional Limits | BIO Limits | FREE Wine Limits |
|---|---|---|---|
| Red wines with residual sugar < 5 g/l | 150 mg / l | 100 mg / l | 90 mg / l |
| Red wines with residual sugar > 5 g/l | 200 mg / l | 170 mg / l | 120 mg / l |
| White and rosé wines with residual sugar < 5 g/l | 200 mg / l | 150 mg / l | 120 mg / l |
| White and rosé wines with residual sugar > 5 g/l | 250 mg / l | 220 mg / l | 150 mg / l |
| Quality wines and sparkling wines | 185 mg / l | 155 mg / l | 111 mg / l |
Industry & Applications
Food
Meat, Fish, Eggs, Milk, Cereals, Legumes, Fats and Oils
Beverage
Wine, Beer, Spirits, Juices, Soft Drinks, Energy Drinks, Sport Drinks
Environmental
Water Analysis, Filters (PM10), Soil.
University
Research laboratories. science faculties, chemistry, physics, materials sciences
Analysis laboratories
Clinics (Pre-analytical, Analysis, Post-analysis), Pharmacological, Forensic
Chemical
Plastics, Detergents, Ceramics, Lubricants, Petroleum, Reagents
Forensic
analysis, weight, drugs density, narcotics, splinters
