Crystal - Analytical Scale
Laboratory Scales > Analytical Scales
Analytical balances with division from 0.1 mg to 1 mg and maximum capacity from 110 g to 510 g (CE approved...
Find more

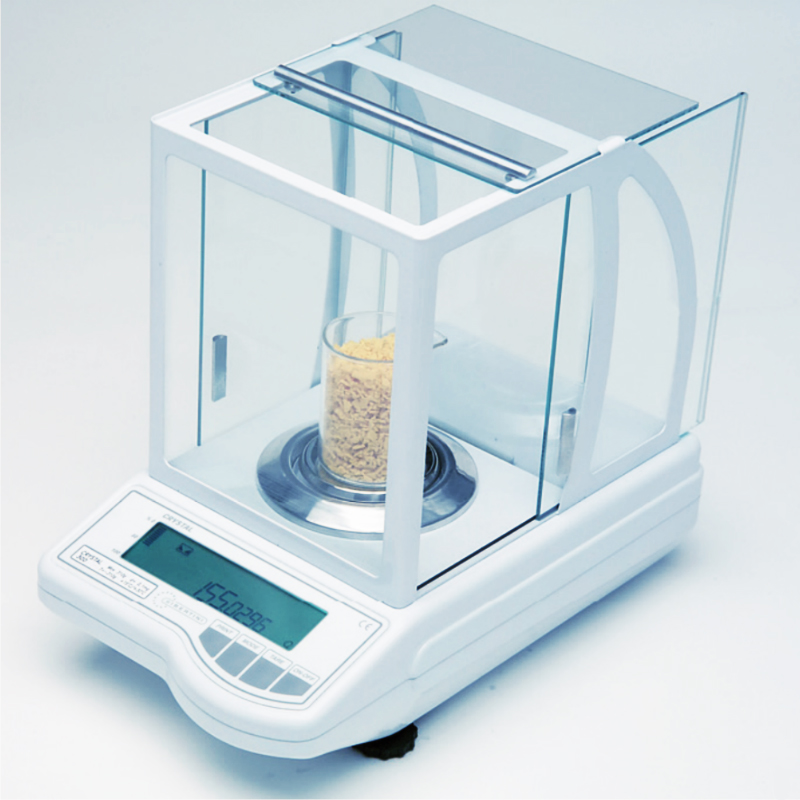

CRYSTAL · ETERNITY
Analytical balances
Readability 0.1 to 1 mg, capacity 110 to 510 g.
Gibertini laboratory analytical balances measure mass with a high degree of precision. More sensitive than precision balances, they combine accuracy with faster readings.
A small footprint and highly repeatable readings make them suited to the most complex and precise weighing tasks: formulation, statistical analysis, density determination, purity analysis, conformity testing. Certified test weights and masses for adjustment and calibration are available for all Gibertini analytical balances.
- 0.1 mgfinest readability
- 510 gmaximum capacity
- 82 mgminimum weight, Ph. Eur. 2.1.7
SERIES

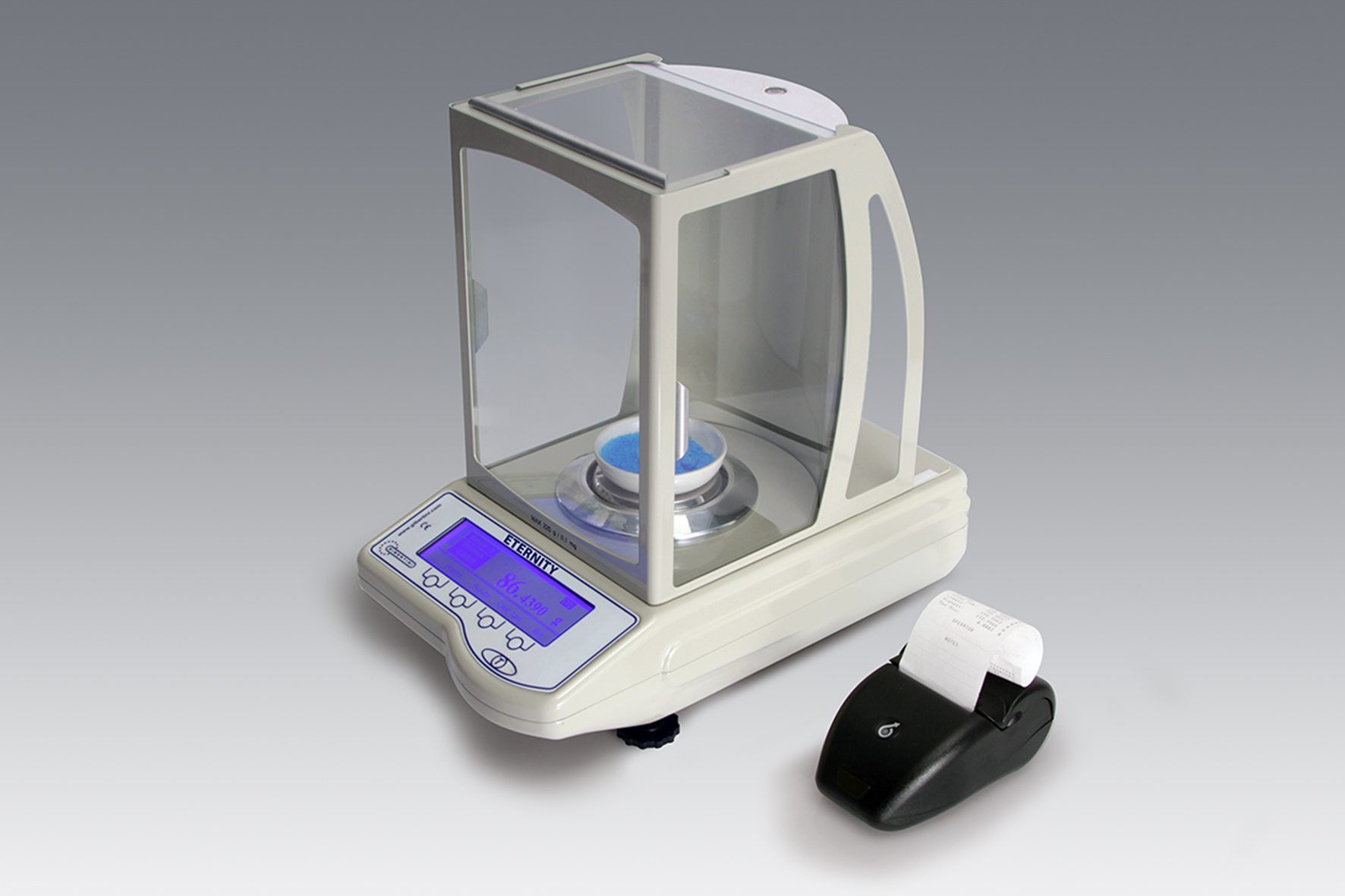

CRYSTAL and ETERNITY
| Series | Capacity | Readability | Approval | Adjustment |
|---|---|---|---|---|
| CRYSTAL | 110 to 510 g | 0.1 to 1 mg | Directive 2014/31/EU | motorized internal mass (CAL) or external mass (SMI) |
| ETERNITY | 120 to 510 g | 0.1 to 1 mg | – | internal mass (CAL) or external mass (SMI) |
Repeatability ±0.05 mg with 0.1 mg readability. On the ETERNITY series, internal-mass adjustment starts every three hours or when the temperature changes.
FEATURES
Cell and housing
All Gibertini analytical balances have a magnetic force compensation cell for high-precision readings. The all-metal housing resists chemicals, giving the instrument a long life even in harsh environments with dust and acids.
Operation is intuitive and results are fast.
- Motorized internal adjustment mass, for fast, consistent adjustment

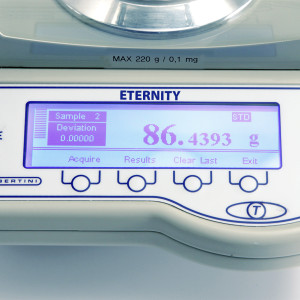

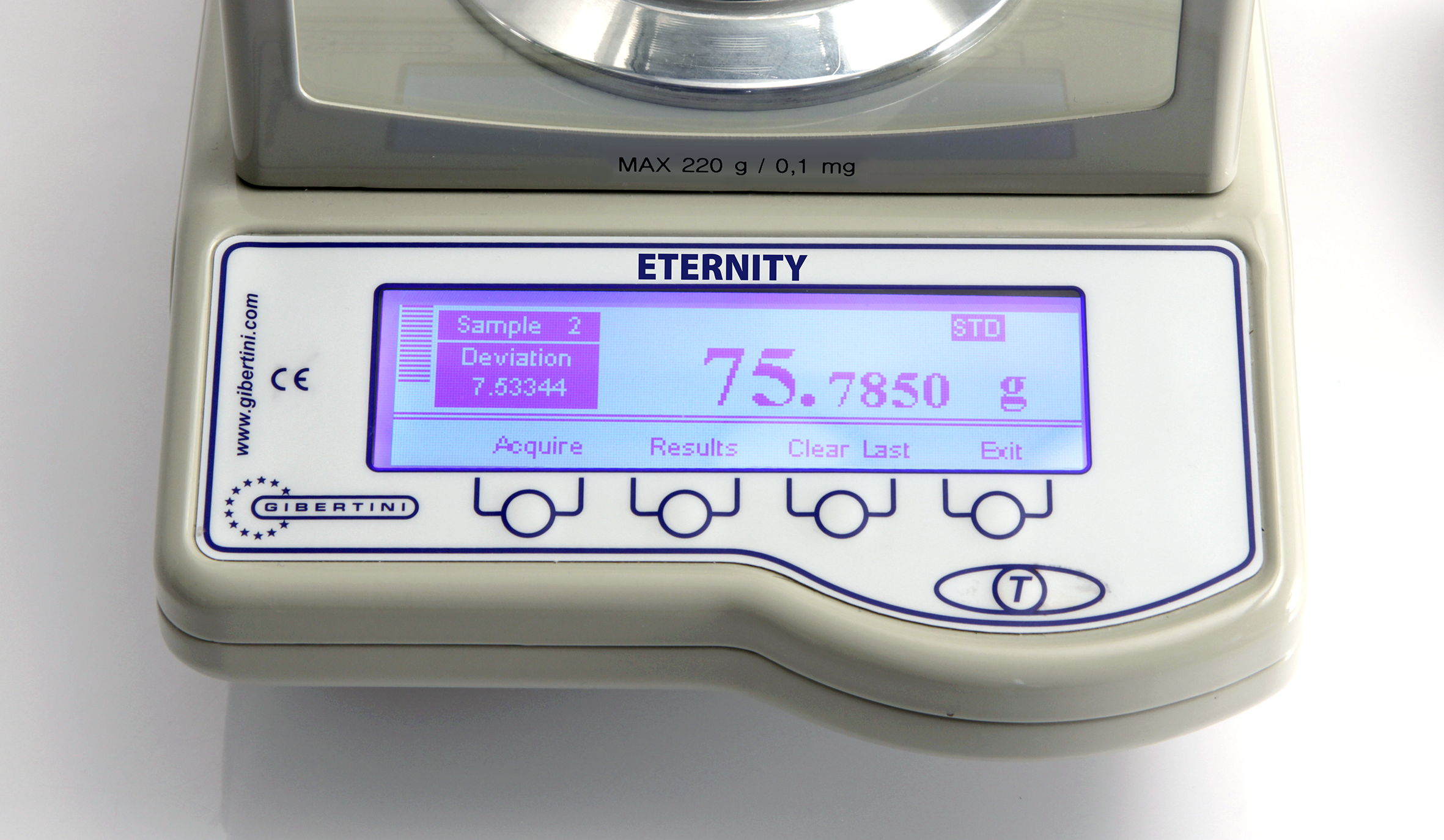

- Bar graph for dosing
- Readings in different units and in percent
- Metal housing resistant to chemicals
MINIMUM WEIGHT · PH. EUR. 2.1.7
Approved for pharmaceutical use
Gibertini CRYSTAL analytical balances are approved under European Directive 2014/31/EU and suitable for compounding in pharmacies (NBP).
| Capacity | Readability | Minimum weight (Ph. Eur. 2.1.7) |
|---|---|---|
| 110 g | 0.1 mg | 82 mg |
| 210 g | 0.1 mg | 82 mg |
| 310 g | 0.1 mg | 82 mg |
| 510 g | 1 mg | 820 mg |
Minimum weight = 820 × d. The ETERNITY series has the same values at the same readability.
View the CRYSTAL series Ph. Eur. 2.1.7 and USP 41: the new pharmacopeia

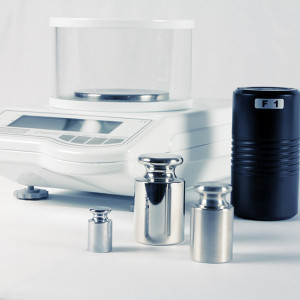

Certification
Calibration and quality
Gibertini laboratory balances, designed for use in food, cosmetics, universities and many other sectors, can be supplied with:
- IQ/OQ certified installationQualified assistance
- ISO calibration reportCalibration reports
- LAT calibration certificateLAT Center No. 00121, ACCREDIA
For alignment with the required standards and reliable measurement results:
- GMP
- GLP
- Ph. Eur.
INDUSTRY AND APPLICATIONS
Where analytical balances are used
Analytical balances are used in a wide range of laboratory applications: valuation of goods for commercial purposes, healthcare, testing of drinking water, food and animal feed, forensic analysis.
Sectors
- Chemical
- Agri-food
- Pharmaceutical
- Jewelry and gold
- Automotive
- Aerospace
- Forensic
- Cosmetics
- University
- Mining and gemology
Most common applications
- Chemical testing of food
- Sample and standard preparation
- Reagent weighing
- Totalizing
- Dosing and formulation
- Density determination (jewelry)
- Specific gravity (mechanical, plastics, chemical)
- Routine pipette checks
- Energy efficiency of special waste
European Pharmacopoeia 2.1.7
Ph. Eur. 2.1.7 · USP <41>
General chapter 2.1.7 of the European Pharmacopoeia, “Balances for analytical purposes”, was published in July 2021. Since January 1, 2022, compliance has been mandatory for every pharmaceutical company that manufactures for or exports to the European market.
The chapter aims to ensure the quality control of medicines in the member states; its requirements are similar to those of General Chapter 41 of the United States Pharmacopeia (USP). It covers quality control of analytical processes:
- instrument calibration: importance, as-found and as-left calibration requirements, measurement uncertainty and minimum weight;
- evaluation of accuracy and repeatability;
- choice of appropriate calibration intervals;
- documentation compliance.
Forensic analysis
Resolution down to 0.1 mg
Gibertini analytical balances with resolution down to 0.1 mg are part of the essential equipment of a forensic laboratory. In the analytical process, weighing is the first step toward the final results; in legal analysis the accuracy of the instrument is fundamental, because the verdict depends on the quality and quantity of the data collected.
The amount of substance collected at a crime scene is often minimal: its weight, measured on the analytical balance, can decide whether the sample becomes evidence to be examined in the laboratory.
- High-precision weighing of small samples: drugs, narcotics, fragments.
- Measuring reagent components: fuels, accelerants and other substances.
- Density measurement, to verify the composition of a material or establish whether two samples come from the same source.
Cosmetics industry
Quality control and formulation
In the cosmetics industry, weight determination is decisive at every stage: from qualitative analysis of the ingredients to formulation and the finished product.
In perfume production, quality control often relies on percentage weighing: after mixing, checking the content of the bottle reduces waste and ensures process quality.
Statistical control is also a legal requirement for cosmetics production: Directive 76/211/EEC, Italian Presidential Decree 391 of May 26, 1980, Italian Law 690 of October 25, 1978. It sets process tolerances according to production.
Gibertini supplies equipment and industrial weighing solutions for quality control, dosing, high-precision formulation and production control (Law 690).
Contact your local distributor
Gibertini instruments are distributed in more than seventy countries. The distributor in your country is your contact for quotations, deliveries and service.
Find the best solution to your needs
A qualified expert will analyze your needs to choose the right instrument.
Contact an expert
