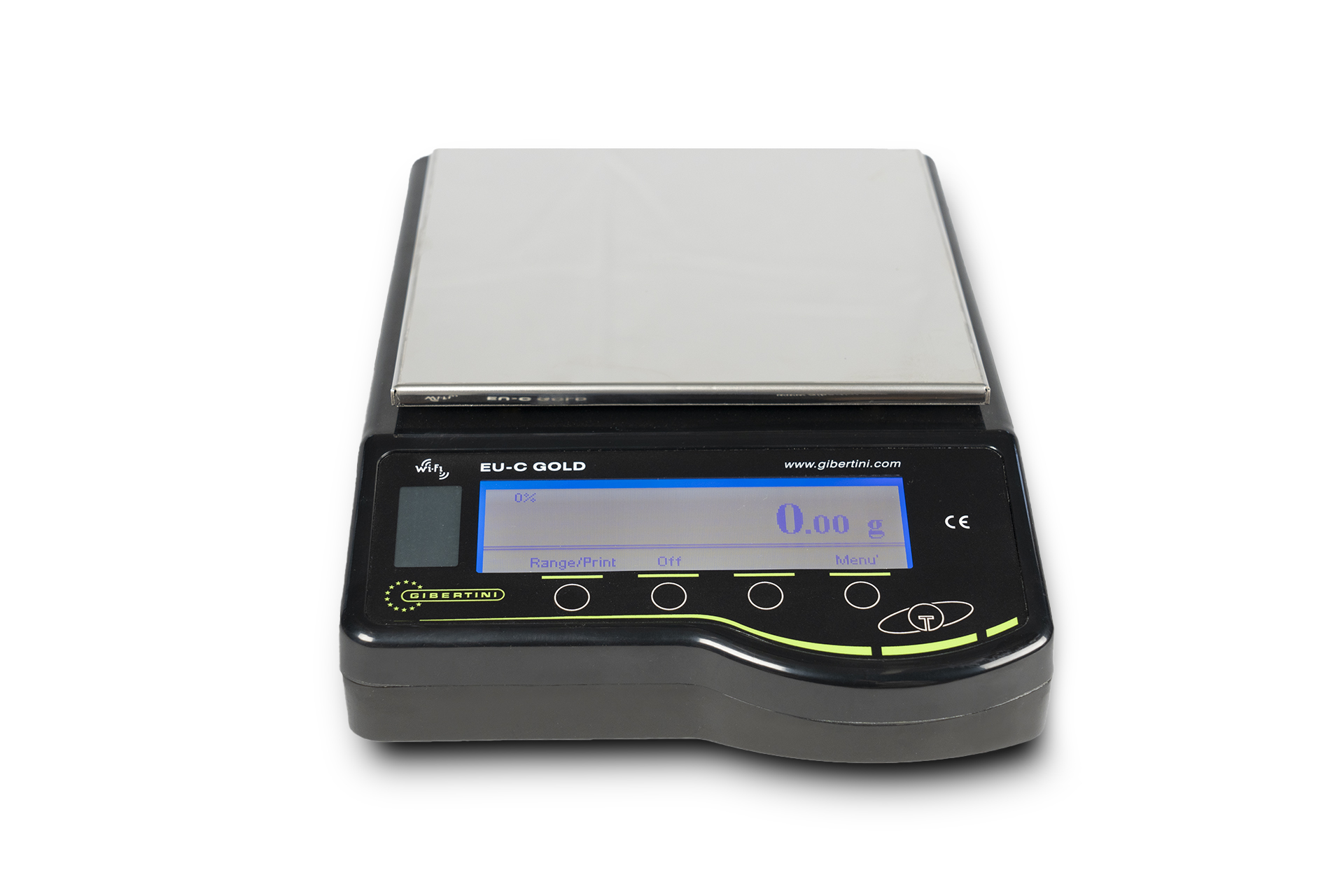

EU-C GOLD
Gibertini EU-C precision scale with division from 0.01 g to 0.1 g and maximum capacity from 820 g to 10200 g per load cell.
Load cell technical scales
Gibertini precision scales or technical scales are designed to offer stability and safety. Entirely in metal, they are safe and resistant to chemical agents, the practically indestructible cells ensure a long life of the instrument even in harsh environments (dusts, acids ...).
With an intuitive user interface and advanced software, Gibertini's EU-C GOLD series of scales simplify the weighing process, enabling operators to work efficiently and eliminating the risk of human error. Data collected via RS232, USB or Wifi, can be easily integrated into existing production systems, helping to optimize processes and improve material traceability.
FEATURES
Compact & Portable
Practical and space-saving, they are ideal for use in small spaces. Each EU-C model can operate both on electricity and on battery (they can be used even in the absence of power supply with an autonomy of 8 hours) .
APPLICATIONS
EU-C GOLD is able to process statistical calculation data, including the number of weighings, the sum, the maximum, the minimum, the difference (maximum - minimum) , the mean, the standard deviation, to facilitate the analysis of the measurements.
Piece counting is a fundamental application in a wide range of industries and is required in different process phases :

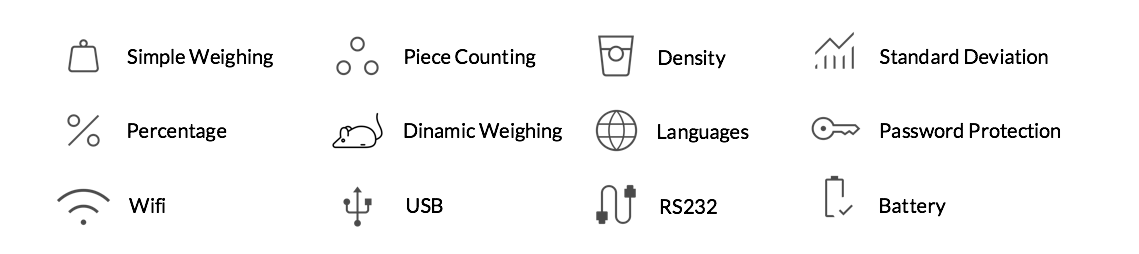

Here is a list of the main features and applications:
PRECISION SCALES
Essential Features
The scales of the EU-C GOLD series are robust, they are easy to use and clean, they facilitate daily work thanks to intuitive procedures and stable and fast results.
LOAD CELL
Designed to last over time
EU-C GOLD scales are designed to last over time. The solid metal construction and reinforced body ensure accurate results for many years. Their main use is in the industrial field for strength and resistance to high temperatures, such as in the Glass, Food, Ceramics or Paints industry .
PRINT GLP/GMP/GCP/ISO
To meet documentation requirements, it is possible to obtain a printout that includes: a header (e.g. company name), the instrument model, the serial number, the date and time . Furthermore, a dedicated space is reserved for the operator's signature in addition to the weighing results. Through the use of the password lock function available on the scale, falsification of timestamps can be prevented.
CERTIFICATION
Calibration & Quality
All Gibertini Precision scales can be supplied with:
To ensure compliance with the required standards and the reliability of the measurement results ( GMP, GLP, Ph.Eur ).
Quality ServiceTHE RIGHT MODEL FOR EVERY TASK
Our EU-C load cell line offers a range of 14 models, from 820 g to 10200 g, with division from 0.01 g to 0.1 g
With maintenance and technical assistance service we will follow your instrument from installation IQ / OQ to maintenance, up to calibration and repair.
| Model Name | Capacity | Readability | Linearity | Repeatability | Response time | Pan dimensions | Output |
|---|---|---|---|---|---|---|---|
| EU-C GOLD 802 | 820 g | 0.01 g | ± 0.02 g | ± 0.02 g | 2 sec. | 150 x 150 mm | USB |
| EU-C GOLD 2002 | 2000 g | 0,01 g | ± 0.02 g | ± 0.01 g | 2 sec. | 150 x 150 mm | USB |
| EU-C GOLD 2002 BP | 2000 g | 0.01 g | ± 0.02 g | ± 0.01 g | 2 sec. | 150 x 150 mm | USB |
| EU-C GOLD 4000 | 4200 g | 0.1 g | ± 0.3 g | ± 0.2 g | 1 sec. | Ø 150 mm | USB |
| EU-C GOLD 4002 | 4200 g | 0.01 g | ± 0.02 g | ± 0.02 g | 2 sec. | 150 x 150 mm | USB |
| EU-C GOLD 4002 BP | 4200 g | 0.01 g | ± 0.02 g | ± 0.02 g | 2 sec. | 150 x 150 mm | USB |
| EU-C GOLD 7500PQ | 7500 g | 0.1 g | ± 0.3 g | ± 0.02 g | 1 sec. | 190 x 190 mm | USB |
| EU-C GOLD 7500PQ BP | 7500 g | 0.1 g | ± 0.3 g | ± 0.02 g | 1 sec. | 190 x 190 mm | USB |
| EU-C GOLD 7500PT | 7500 g | 0.1 g | ± 0.3 g | ± 0.2 g | 1 sec. | Ø 190 mm | USB |
| EU-C GOLD 7500PT BP | 7500 g | 0.1 g | ± 0.3 g | ± 0.2 g | 1 sec. | Ø 190 mm | USB |
| EU-C GOLD 7500DR | 950 g | 0.01 g | ± 0.05 g | ± 0.02 g | 2 sec. | Ø 190 mm | USB |
| EU-C GOLD 7500DR BP | 7500 g | 0.1 g | ± 0.3 g | ± 0.2 g | 1 sec. | Ø 190 mm | USB |
| EU-C GOLD 10000PT | 10200 g | 0.1 g | ± 0.5 g | ± 0.2 g | 2 sec. | Ø 190 mm | USB |
| EU-C 10000PT BP | 10200 g | 0.1 g | ± 0.5 g | ± 0.2 g | 2 sec. | Ø 190 mm | USB |

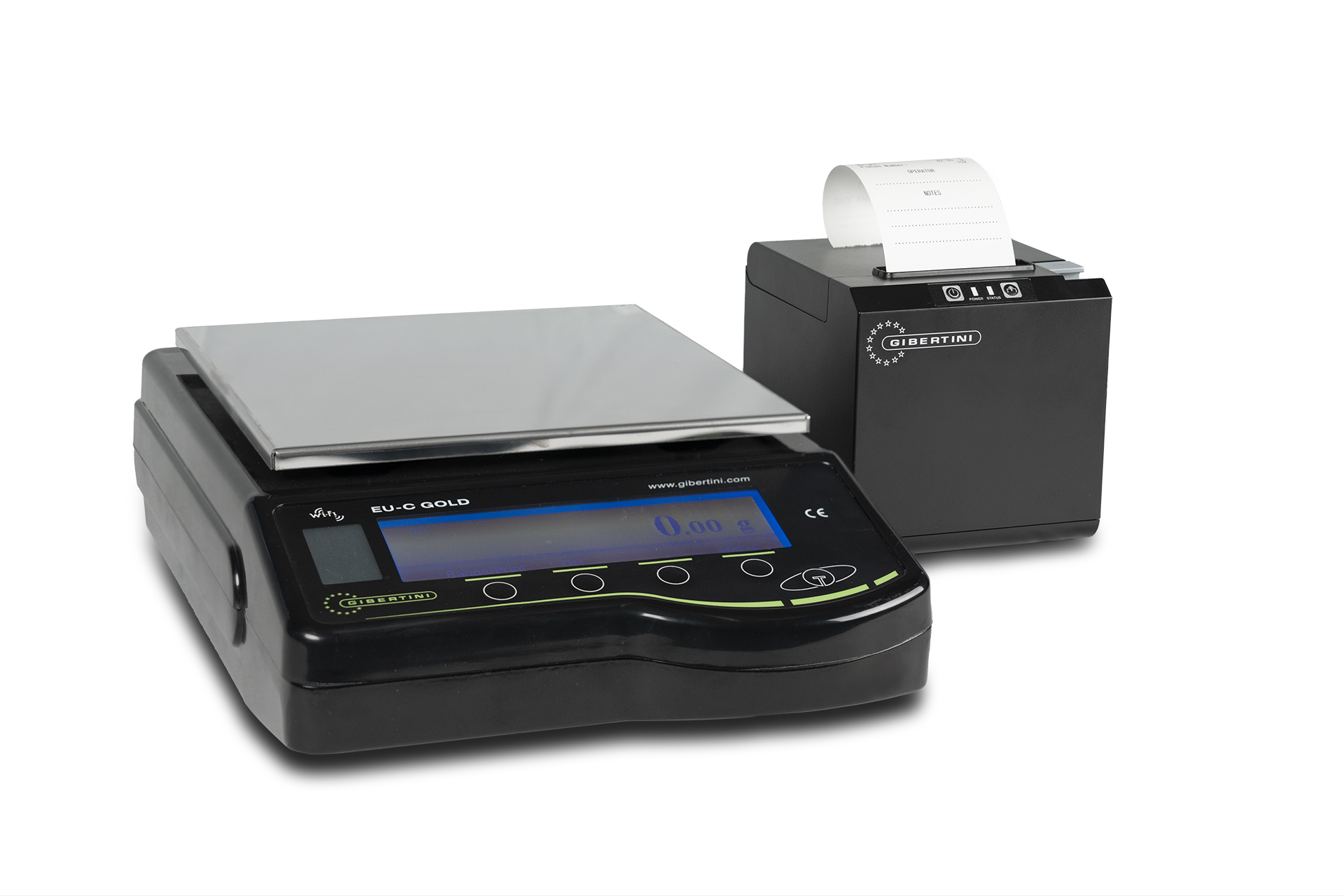

For every need, Rechargeable batteries ("BP" models) , customizable weighing pans are available. masses for full scale calibration, Software specially designed to improve and speed up the weighing processes. It is also possible to combine them with Anti-vibration weighing tables and Printers .
| Output | USB |
| Operating temperature | 15°÷ 30°C |
| Power supply | 100 ÷ 240 VAC |
| Battery autonomy | 8 hours c.a ("BP" models) |
| Total Dimensions (L x W x H) | 215 x 330 x 95 mm |
| Net Weight | 3 kg |
Accessories
The following accessories are available for all Gibertini EU-C series scales:
Precision Balances and Applications
EU-C GOLD series scales are suitable for many applications in the ceramic industry, true excellence of Made in Italy. The production of tiles, bricks, crockery, decorative objects, includes different production phases: receiving goods and raw materials, formulating pastes and powders and quality control of the finished product.
Gibertini scales are the right choice to ensure accurate and fast weight measurement, counting and quality control.
The technical or precision scales of the EU-C GOLD series are used in the paint industry where speed and precision in mixing is required. Particularly appreciated for their robustness and ease of use, they can be easily integrated into automatic dosing and mixing systems thanks to the RS232, USB or WiFi outputs for immediate configuration.
